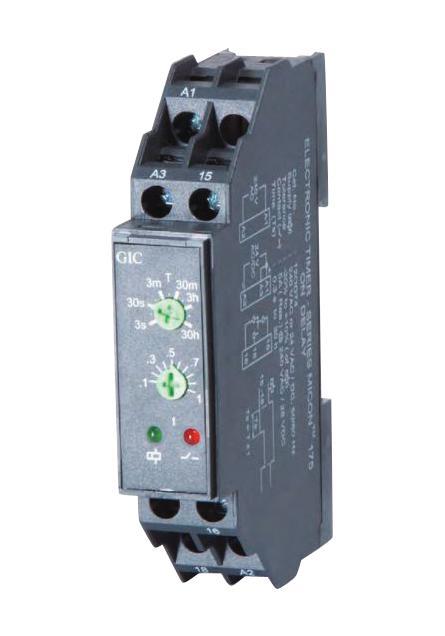

Analogue Timer, Spdt, 30H, 240V; Product Range:micon 175 Series; Timer Functions:on-Delay; Time Min:0.3S; Time Max:30H; No. Of Timing Ranges:-; Timer Output:1 Changeover Relay; Supply Voltage Max:240Vac; Current Rating Nom:5A; Rohs Compliant: Yes
GIC
TIMER, MULTIFUNCTION; Product Range: -; Timer Functions: Recycling; Time Min: 0.05s; Time Max: 60h; No. of Timing Ranges: 10Ranges; Timer Output: 1 Changeover Relay; Supply Voltage Max: 240VAC; Current Rating Nom: 26mA; Connection / Termination: Screw Terminals; SVHC: No SVHC (15-Jan-2019); Adjustment Type: Screwdriver Slot; Coil Voltage VAC Nom: 240V; Connector A Contact Material: AgCdO; Contact Configuration: SPCO; Contact Current AC Max: 8A; Contact Voltage AC Max: 250V; Current Rating: 8A; Delay Time Range: 0.05s to 60h; External Depth: 101mm; External Length / Height: 78.8mm; External Width: 22.7mm; Height: 78.8mm; IP / NEMA Rating: IP20; Nom Input Voltage: 240V; Operating Temperature Max: 60°C; Operating Temperature Min: -20°C; Operating Time Range: 0.05 - 1sec, min, hour, 0.15 - 3sec, min, hour, 0.5 - 10sec, min, hour, 3 - 60hour; Power Rating: 5VA; Relay Mounting: DIN Rail; Supply Voltage AC Max: 240VAC; Supply Voltage AC Min: 24VAC; Supply Voltage DC Max: 48VDC; Supply Voltage DC Min: 24VDC
Finder
Timer, Digital, Eliro, Dpno, 8 Function; Product Range:eliro Series; Timer Functions:multifunction; Time Min:0.1S; Time Max:999H; No. Of Timing Ranges:1Ranges; No. Of Digits:3; Timer Output:1 Changeover Relay; Supply Voltage Rohs Compliant: Yes
GIC
MODULAR, MF-INDUSTRIAL-TIMER; Product Range:-; Timer Functions:Multifunction; Time Min:0.05s; Time Max:60h; No. of Timing Ranges:10Ranges; Timer Output:1 Changeover Relay; Supply Voltage Max:240VAC; Current Rating Nom:26mA; Connection / Termination:Screw Terminals; SVHC:No SVHC (15-Jan-2019); Adjustment Type:Screwdriver Slot; Coil Voltage VAC Nom:240V; Contact Configuration:DPDT; Contact Current AC Max:8A; Contact Voltage AC Max:250V; Delay Time Range:0.05s to 60h; External Depth:101mm; External Length / Height:78.8mm; External Width:22.5mm; Nom Input Voltage:240V; Operating Time Range:0.05 - 1sec, min, hour, 0.15 - 3sec, min, hour, 0.5 - 10sec, min, hour, 3 - 60hour; Relay Mounting:DIN Rail; Supply Voltage Min:24V; Timing Adjustment:Potentiometer
Finder
Digital Time Switch, Spdt, 1Min, 240V; Product Range:crono Series; Timer Functions:multifunction; Time Min:1Min; Time Max:-; No. Of Timing Ranges:-; No. Of Digits:-; Timer Output:1 Changeover Relay; Supply Voltage Max:240Vac; Currentrohs Compliant: Yes
GIC
TIMER, MULTIFUNCTION; Product Range: -; Timer Functions: Multifunction; Time Min: 0.05s; Time Max: 60h; No. of Timing Ranges: 10Ranges; Timer Output: 1 Changeover Relay; Supply Voltage Max: 240VAC; Current Rating Nom: 26mA; Connection / Termination: Screw Terminals; SVHC: No SVHC (15-Jan-2019); Adjustment Type: Screwdriver Slot; Coil Voltage VAC Nom: 240V; Connector A Contact Material: AgCdO; Contact Configuration: SPDT; Contact Current AC Max: 8A; Contact Voltage AC Max: 250V; Current Rating: 8A; Delay Time Range: 0.05s to 60h; External Depth: 101mm; External Length / Height: 78.8mm; External Width: 22.7mm; Height: 78.8mm; IP / NEMA Rating: IP20; Nom Input Voltage: 240V; Operating Temperature Max: 60°C; Operating Temperature Min: -20°C; Operating Time Range: 0.05 - 1sec, min, hour, 0.15 - 3sec, min, hour, 0.5 - 10sec, min, hour, 3 - 60hour; Power Rating: 5VA; Relay Mounting: DIN Rail; Supply Voltage AC Max: 240VAC; Supply Voltage AC Min: 24VAC; Supply Voltage DC Max: 48VDC; Supply Voltage DC Min: 24VDC
Finder
