F Fe ea at tu ur re es s
? Fixed 5V Output
? VIN Range: 2.8V ～ 5.0V
? Output Current: up to 100mA（V IN ≥2.8V）
up to 250mA（V IN ≥3.6V）
? Constant Frequency Operation at All Loads
? Low Noise Constant Frequency (400kHz)
Operation
? Automatic Soft-Start Reduces Inrush
Current
? Shutdown Current <1μA
? Short-Circuit Protection
? No Inductors
? Available in Low Profile 6-Lead SOT23
Package
A Ap pp pl li ic ca at ti io on ns s
? White LED Backlighting
? Li-Ion Battery Backup Supplies
? Local 3V to 5V Conversion
? Smart Card Readers
D De es sc cr ri ip pt ti io on n
The SC1414 is a low noise, constant frequency
(400kHz) switched capacitor voltage doubler. It
produces a regulated output voltage from a
2.8V to 5.0V input. Low external parts count
(one flying capacitor and two small bypass
capacitors at VIN and VOUT) make the SC1414
ideally  suited  for  small,  battery-powered
applications.
The SC1414 have thermal shutdown capability
and can survive a continuous short circuit from
VOUT to GND. Built-in soft-start circuitry
prevents excessive inrush current during
start-up.
High switching frequency enables the use of
small ceramic capacitors. A low current
shutdown feature disconnects the load from VIN
and reduces quiescent current to <1uA.

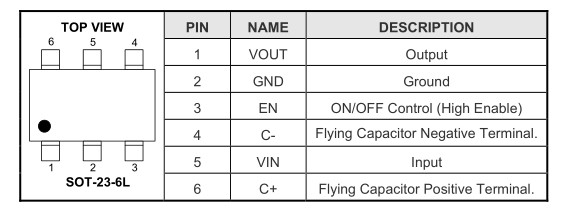

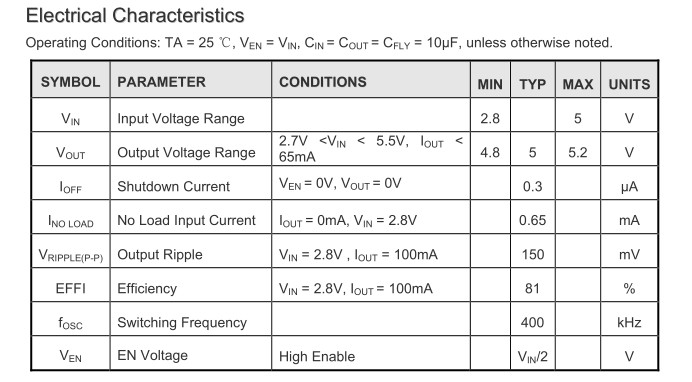

The SC1414 is available in the SOT-23-6L
power packages.
? PCMCIA Local 5V Supplies
