Blackfin Bluetooth EZ-Extender

2009-11-09 11:15www.elecfans.co 佚名我要評論（0）我要收藏

Blackfin Bluetooth EZ-Extender

The Blackfin Bluetooth EZ-Extender® daughter board plugs onto the Compatible EZ-Board, EZ-KIT Lites, and STAMP board. The Blackfin Bluetooth EZ-Extender extends the capabilities of the Blackfin boards by providing a connection to a Bluetooth module, as well, isolates the low-level configuration and communication tasks of integrating Bluetooth and radio frequency (RF) wireless technologies in your Blackfin board designs.

The Bluetooth EZ-Extender is designed to be used in conjunction with an EZ-Board, EZ-KIT Lite or STAMP board running the open source Linux operating system (OS). For more information about running Linux OS on a Blackfin processor, go to blackfin.uclinux.org/gf .

Part Number:
ADZS-BFBLUET-EZEXT

Tools Support:
Blackfin uClinux

特性

  • Bluegiga WT12 module based on CSR's BC04 chipset.
  • Bluetooth radio antenna, Fully implemented protocol stack, HCI and iWRAP firmware.
  • USB interface; Full speed USB interface for communicating with other compatible digital devices. The module acts as a USB peripheral.
  • UART interface; Standard UART interface for communicating with other serial devices, Supports hardware flow control.
  • Expansion interface; Allows other EZ-Extenders to be stacked.
  • Compatible boards: BF518 and BF526 EZ-Board and EZ-KIT Lites, BF537 and BF548 EZ-KIT Lites and BF537 STAMP board

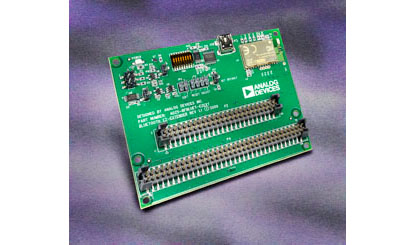

    Product Image: BF Bluetooth EZ-Extender

    BF_BT_EZExtender
    Product Image: BF Bluetooth EZ-Extender
