MAX14979E 寬帶、具有±15kV ESD保護的LVD
The MAX14979E is optimized for high-speed differential switching applications. The device is ideal for low-voltage differential signal (LVDS) and low-voltage, positive emitter-coupled logic (LVPECL) switching applications. The MAX14979E provides enhanced electrostatic discharge (ESD) protection up to ±15kV and excellent high-frequency response, making this device especially useful for interfaces that must go to an outside connection.
The MAX14979E provides extremely low capacitance (CON) as well as low resistance (RON) for low-insertion loss and bandwidth up to 650MHz (1.3Gbps). In addition to the four pairs of double-pole/double-throw (DPDT) switches, the MAX14979E provides low-frequency (up to 50MHz) and AUX switching that can be used for LED lighting or other applications.
The MAX14979E is available in a space-saving, 36-pin TQFN package and operates over the extended -40°C to +85°C temperature range.±15kV ESD Protected per MIL-STD-883, Method 3015
Single +3.0V to +3.6V Power-Supply Voltage
Low On-Resistance (RON): 4Ω (typ), 6.5Ω (max)
Low On-Capacitance (CON): 8pF (typ)
-23dB Return Loss (100MHz)
-3dB Bandwidth: 650MHz
Built-In AUX Switches for Switching Indicators
Low 450µA (max) Quiescent Current
Bidirectional 8 to 16 Multiplexer/Demultiplexer
Space-Saving, Lead-Free, 36-Pin, 6mm x 6mm TQFN Package
The MAX14979E provides extremely low capacitance (CON) as well as low resistance (RON) for low-insertion loss and bandwidth up to 650MHz (1.3Gbps). In addition to the four pairs of double-pole/double-throw (DPDT) switches, the MAX14979E provides low-frequency (up to 50MHz) and AUX switching that can be used for LED lighting or other applications.
The MAX14979E is available in a space-saving, 36-pin TQFN package and operates over the extended -40°C to +85°C temperature range.
關鍵特性
應用/使用
LVDS和LVPECL開關
筆記本電腦
LVDS至圖形板切換

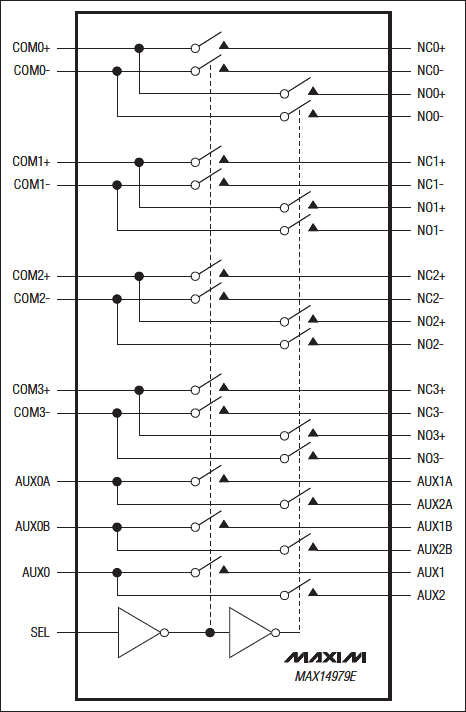

 功能框圖 |
