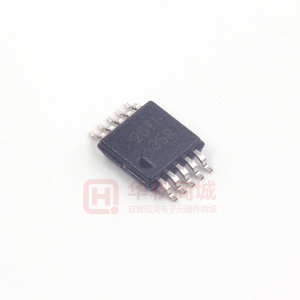

數據： Dual 12-Ohm SPDT Analog Switch With Undershoot/Overshoot Voltage Protection 數據表
| ? |
|---|
| Configuration |
| Number of Channels (#) |
| Power Supply Type |
| Vss (Min) (V) |
| Vss (Max) (V) |
| Vdd (Min) (V) |
| Vdd (Max) (V) |
| Ron (Typ) (Ohms) |
| Bandwidth (MHz) |
| Rating |
| Operating Temperature Range (C) |
| Package Size: mm2:W x L (PKG) |
| Package Group |
| Supply Range (Max) |
| Ron (Max) (Ohms) |
| Input/Output Continuous Current (Max) (mA) |
| Supply Current (Typ) (uA) |
| Supply Current (Max) (uA) |
| Features |
| OFF-state leakage current (Max) (μA) |
| ON-state leakage current (Max) (μA) |
| Input/Output ON-state Capacitance (Typ) (pF) |
| Input/Output OFF-state Capacitance (Typ) (pF) |
| ESD Charged Device Model (kV) |
| ESD HBM (kV) |
| VIL (Max) (V) |
| VIH (Min) (V) |
| ? |
| TS5A623157 |
|---|
| 2:1 SPDT ? ? |
| 2 ? ? |
| Single ? ? |
| N/A ? ? |
| N/A ? ? |
| 1.65 ? ? |
| 5.5 ? ? |
| 4 ? ? |
| 371 ? ? |
| Catalog ? ? |
| -40 to 85 ? ? |
| 10VSSOP: 15 mm2: 4.9 x 3(VSSOP) ? ? |
| VSSOP ? ? |
| 5.5 ? ? |
| 45 ? ? |
| 50 ? ? |
| 0.01 ? ? |
| 0.75 ? ? |
| Break-before-make Voltage Overshoot and Undershoot protection ? ? |
| 0.15 ? ? |
| 0.15 ? ? |
| 14.5 ? ? |
| 5 ? ? |
| 1 ? ? |
| 2 ? ? |
| Vdd*.3 ? ? |
| Vdd*.7 ? ? |
金額：￥2.70000
