數據： TS3USB221 High-Speed USB 2.0 (480-Mbps) 1:2 Multiplexer – Demultiplexer Switch With Single Enable 數據表
TS3USB221是一款高帶寬開關，專為手機和消費類應用（如手機，數字）中的高速USB 2.0信號切換而設計帶有集線器或帶有限USB I /O的控制器的相機和筆記本電腦。該開關的寬帶寬（1.1 GHz）允許信號以最小的邊沿和相位失真通過。該器件將來自USB主機設備的差分輸出復用到兩個相應輸出之一。該開關是雙向的，對輸出端的高速信號幾乎沒有衰減。 TS3USB221設計用于低位到位偏移和高通道到通道噪聲隔離。 TS3USB221還兼容各種標準，如高速USB 2.0（480 Mbps）。
| Device Type |
| Number of Channels (#) |
| Configuration |
| VCC (Min) (V) |
| VCC (Max) (V) |
| Ron (Typ) (Ohms) |
| Input/Ouput Voltage (Min) (V) |
| Input/Ouput Voltage (Max) (V) |
| ICC (Max) (uA) |
| Bandwidth (MHz) |
| ESD HBM (Typ) (kV) |
| Features |
| Rating |
| Operating Temperature Range (C) |
| Package Group |
| Package Size: mm2:W x L (PKG) |
| Pin/Package |
| TS3USB221 | TS3USB221A | TS3USB221A-Q1 | TS3USB221E | TS3USB30 | TS3USB30E | TS3USB31E |
|---|---|---|---|---|---|---|
| USB/MHL Switch | USB/MHL Switch | USB/MHL Switch | USB/MHL Switch | USB/MHL Switch | USB/MHL Switch | |
| 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 2:1 SPDT | 2:1 SPDT | 2:1 SPDT | 2:1 SPDT | 2:1 SPDT | 2:1 SPDT | 1:1 SPST |
| 2.3 | 2.3 | 2.3 | 2.3 | 3 | 3 | 2.25 |
| 3.6 | 3.6 | 3.6 | 3.6 | 4.3 | 4.3 | 4.3 |
| 3 | 3.4 | 3 | 6 | 6 | 6.5 | |
| 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| 5.5 | 5.5 | 5.5 | 5.5 | 4.3 | 4.3 | 4.3 |
| 30 | 30 | 30 | 30 | 1 | 1 | 1 |
| 1100 | 900 | 900 | 1000 | 955 | 900 | 1100 |
| 2 | 7 | 7 | 12 | 6 | 8 | 8 |
|
USB 2.0 Logic Controlled (Output Enabled) |
USB 2.0 Logic Controlled (Output Enabled) |
USB 2.0 Logic Controlled (Output Enabled) |
USB 2.0 Logic Controlled (Output Enabled) |
Logic Controlled (Output Enabled) |
USB 2.0 Logic Controlled (Output Enabled) |
USB 2.0 Logic Controlled (Output Enabled) |
| Catalog | Catalog | Automotive | Catalog | Catalog | Catalog | Catalog |
| -40 to 85 | -40 to 85 | -40 to 125 | -40 to 85 | -40 to 85 | -40 to 85 | -40 to 85 |
|
UQFN VSON |
UQFN | UQFN |
UQFN VSON |
UQFN |
UQFN VSSOP |
UQFN |
|
10UQFN: 3 mm2: 2 x 1.5(UQFN) 10VSON: 9 mm2: 3 x 3(VSON) |
10UQFN: 3 mm2: 2 x 1.5(UQFN) | 10UQFN: 3 mm2: 2 x 1.5(UQFN) |
10UQFN: 3 mm2: 2 x 1.5(UQFN) 10VSON: 9 mm2: 3 x 3(VSON) |
10UQFN: 3 mm2: 1.4 x 1.8(UQFN) |
10UQFN: 3 mm2: 1.4 x 1.8(UQFN) 10VSSOP: 15 mm2: 4.9 x 3(VSSOP) |
8UQFN: 2 mm2: 1.5 x 1.5(UQFN) |
|
10UQFN 10VSON |
10UQFN | 10UQFN |
10UQFN 10VSON |
10UQFN |
10UQFN 10VSSOP |
8UQFN |

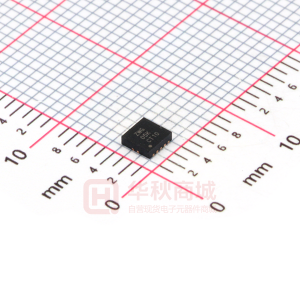

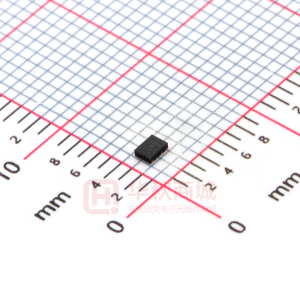

型號：TS3USB221AQRSERQ1 封裝：UQFN10
品牌：TI 描述：TS3USB221A-Q1 ESD保護，高速USB 2.0（480 Mbps）1:2多路復用器/解復用器開關，單啟用
金額：￥23.73000
去購買
金額：￥3.85140
去購買
金額：￥4.63344
去購買
