AVR32音頻比特流DAC驅動例如烷基芐基二甲基銨氯化物

　　這周在AVR32單片機烷基芐基二甲基銨氯化物是相當適合生成音頻播放。本文將解釋如何執行此操作，并包括一個生成正弦波輸出的示例驅動程序的鏈接。

　　許多嵌入式應用程序越來越多地具有音頻回放功能，無論是對用戶輸入的簡單的音頻反饋還是完全的高速流音頻。通過使用通用的時鐘界面，基于ATMEL AVR32單片機的烷基芐基二甲基銨氯化物能夠支持廣泛的播放頻率。

　　功能描述

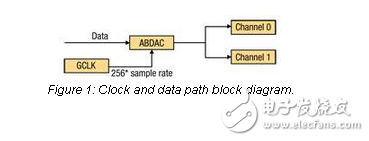

　　這是一個非常簡單的外圍烷基芐基二甲基銨氯化物及其使用的是簡單的。它需要從通用時鐘系統提供的時鐘信號，以及對通道的數據輸入。圖1中的框圖給出了模塊的概述。詳細描述了周圍看到的烷基芐基二甲基銨氯化物裝置的數據表。

　　Generic clock

　　The ABDAC uses a generic clock to provide the sample frequency. This generic clock is hard wired inside the device and must be 256 times the sample frequency.

　　The generic clock should be configured and enabled before the ABDAC is enabled. For a description of which generic clock is used， see the clock section in the datasheet for the device. Further configurations of the generic clock are also described in this section.

　　The generic clock output range may be limited by its source clock frequency. It is therefore vital to design in an oscillator which can provide a base frequency that is dividable by the generic clock divider in order to reach the required output sample rate. Table 1 shows examples.
