利用先進的時鐘控制能力提高MCU設計的處理效率

　　MCUs擴散到越來越多的權力約束的設計，加工效率成為提高系統設計的關注。以較少的功率獲得額外的處理能力的驅動器不僅在電池供電產品中很重要，而且，越來越多的電源也被限制在許多“插件”模塊中，這些電源模塊的規格限制了電源。在這種情況下，一個高效的設計將能夠提供更多的功能，并創造一個較低的效率實現競爭優勢。

　　單片機設計的一個被忽視的方面是在時鐘控制區域。設計人員可以通過使用時鐘控制模塊的高級功能來調整CPU、外設和其他消耗資源的時鐘，從而創建更高效的設計。本文將探討先進的時鐘控制模塊的一些常見功能的能力，并展示他們?nèi)绾问褂?，可以提高處理效率，在大多?shù)基于MCU的設計。

　　Clock sources

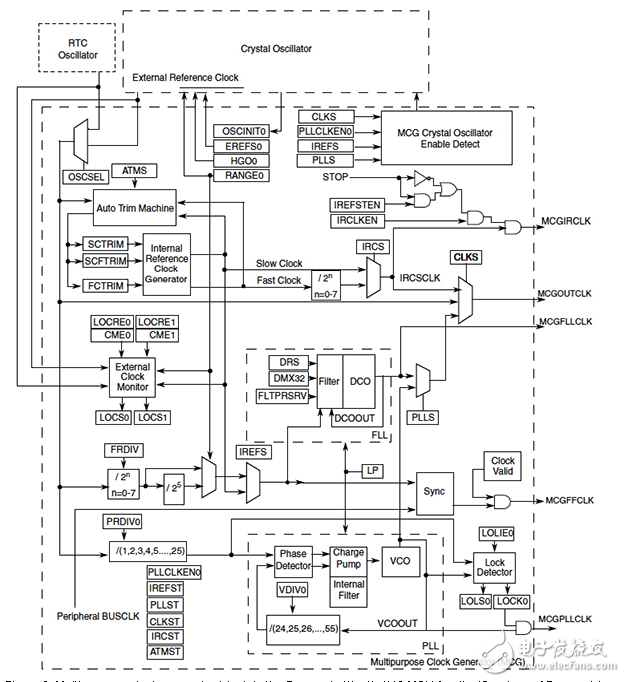

　　The overall operation of the MCU is managed by a clock-control block and many clock-control blocks have features that can be used to select， control， and manage the clock sources for the CPU， memory， peripherals， and analog blocks. By controlling the clocks to these blocks， and even turning off the clock for features not being used during certain processing routines， power can be applied to just the sections of the MCU that need it and just when they need it， making for a very efficient implementation. The starting point for clock management and control are the various clock sources available for use by the various sub-modules. Understanding the advantages and disadvantages of each clock source is the starting point for an efficient MCU implementation.
