Programmable Logic for the Masses： Lattice MACHXO2 CPLDs

　　任何邏輯設計者都會告訴你，離散邏輯運行良好，但決不是真正的理想解決方案。除非你需要的是一個單一的門或逆變器，建立邏輯功能從離散的邏輯芯片可以采取許多設備，電路板空間和電源。這一點尤其如此，因為高級功能塊是由原始邏輯元素從底層構建而成的。

　　超低成本評估和開發工具包是一個很好的方法來探索一項對你來說可能沒有風險或時間的新技術。PLD技術就是一個很好的例子。

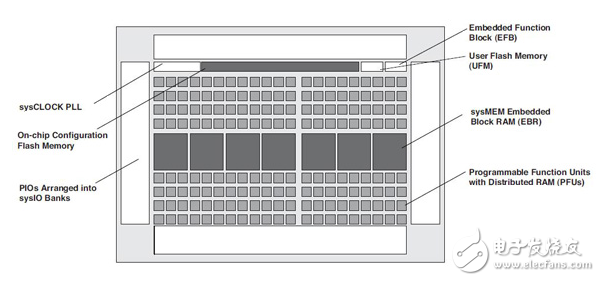

　　萊迪思半導體是PLD、CPLD、FPGA供應商誰提供一個低成本的開發工具包，支持machxo2，一家人。本文以在功能和家庭功能的machxo2看起來和新的machxo2微微開發工具包。這座“罩”下，讓你知道如果你決定有機會在您的路徑使用可編程邏輯的期望。

　　Programmable perspective

　　Programmable Logic Devices have been around for a long time and have earned their way into our boards and systems. Early simple， sum-of-products， fusible-link technology has given way to ASIC-like densities and in-system Flash-based re-programmability. I/O cells have improved to provide higher speed interfaces， differential interfaces， high-drive and sink pins， as well as offering dynamic bi-directional control. Very useful on-chip resources include oscillators， PLLS， regulators， charge pumps， and other system functions.

　　One key advance is function libraries available for today’s PLDs， CPLDs， and FPGAs that provide canned function-block solutions to simple and complex sub-systems. While some IP is bought or licensed， device makers provide many free IP blocks to entice us into using their parts. These include UARTs， I2C and SPI interfaces， memory controllers and more.

　　Tools make a difference， as well， and here， most PLD makers have their own or receive support from third parties. Tools can be free or expensive. It is not always true that you get what you pay for. In many cases， free or low-cost tools are as good as the store-bought flavors or better. This is especially true when it comes to taking advantage of specific CPLD and FPGA architectures.
