外殼溫度與環境溫度

　　當你想要控制一個設備的溫度時，關于系統環境溫度的模糊性會導致降額曲線的不精確。測量外殼溫度而不是環境溫度可以簡化和提高熱測試過程的準確性。

　　環境溫度是指一個房間內的溫度，或討論物體周圍的溫度。對于電子元件，環境溫度以及附近組件的功耗和元件自身的功耗是極端溫度的主要來源。極端溫度會損壞部件，應盡可能避免。不幸的是，通常情況下，限制環境溫度是不可能的，因?yàn)樘囟ǖ膽?yīng)用程序中使用的設備。終端系統設計者唯一可用的選項是限制設備本身組件的功耗。這是通過在高環境溫度的應用程序中限制流經這些組件的電流（有效地降低電源功率限制）來實現的。這種降低的功率限制，被稱為“額”，通常是在數據表中指定使用“降額曲線”（見圖1）。

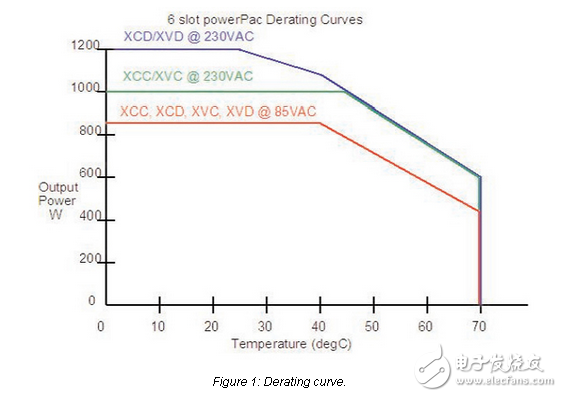

　　Figure 1 shows the derating curves for the Xgen power supply. Taking the XCC/XCV model operating at 230 Vac as an example， the power supply is rated to output 1000 watts from 0°C to 45°C ambient. Then from 45°C to 70°C， the power supply is then linearly derated to 600 watts. The power supply is not rated for operation at ambient temperatures higher than 70°C. If the power supply is operated within these limits， any harmful thermal conditions are avoided. However， the accuracy of the derating curve is limited by the accuracy of the ambient temperature measurement， and this raises a number of issues， which will be discussed in the next section.
