Diodes Incorporated 集成電路（IC） AP7365-18WG-7

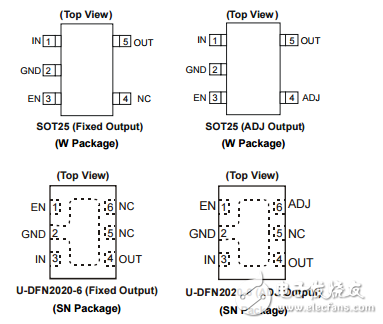

　　The AP7365 is a 600mA， adjustable and fixed output voltage， low dropout linear regulator. This device includes pass element， error amplifier， band-gap， current limit and thermal shutdown circuitry. The device is turned on when EN pin is set to logic high level. The characteristics of low dropout voltage and low quiescent current make it suitable for low power applications such as battery powered devices. The typical quiescent current is approximately 35μA. Built-in current-limit and thermal-shutdown functions prevent IC from damage in fault conditions. This device is available with adjustable output from 0.8V to 5.0V， and fixed version with 0.8V， 1.0V， 1.2V， 1.5V， 1.8V， 2.0V， 2.5V， 2.8V， 3.0V， 3.3V and 3.9V outputs. Please contact your local sales office for other voltage options. The AP7365 is available in SOT25， SOT89， SOT223， and UDFN2020-6 packages.
