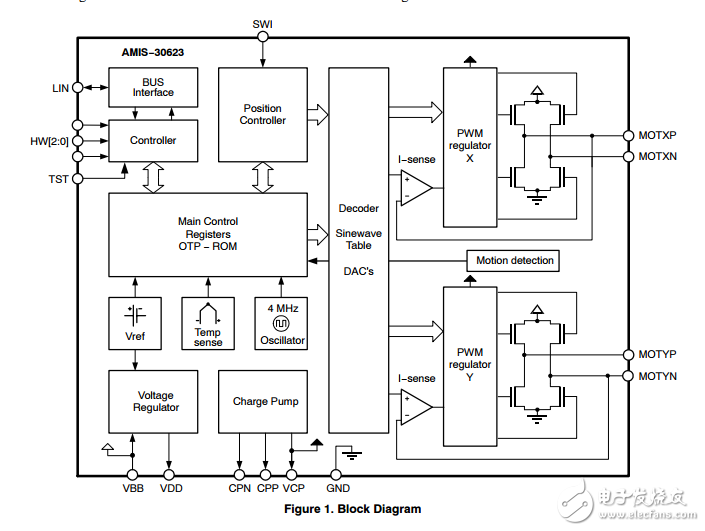

INTRODUCTION The AMIS?30623 is a single?chip micro?stepping motordriver with position controller and control/diagnostic interface. It is ready to build dedicated mechatronics solutions connected remotely with a LIN master. The chip receives positioning instructions through the bus and subsequently drives the motor coils to the desired position. The on?chip position controller is configurable (OTP or RAM) for different motor types, positioning ranges and parameters for speed, acceleration and deceleration. The AMIS?30623 acts as a slave on the LIN bus and the master can fetch specific status information like actual position, error flags, etc. from each individual slave node. An integrated sensor?less step?loss detection prevents the positioner from loosing steps and stops the motor when running into stall. This enables silent, yet accurate position calibrations during a referencing run and allows semi?closed loop operation when approaching the mechanical end?stops. The chip is implemented in I2T100 technology, enabling both high voltage analog circuitry and digital functionality on the same chip. The AMIS?30623 is fully compatible with the automotive voltage requirements.
