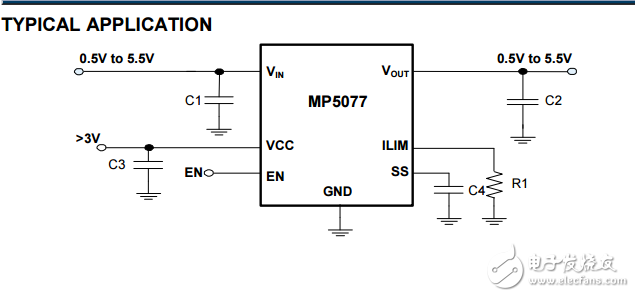

The MP5077 provides up to 7A load protection over a 0.5V to 5.5V voltage range. With the small RDSON in tiny package， MP5077 is a very high efficiency and space saving solution for notebooks， tablets， and other portable/batteryoperated applications. With the soft start function， the MP5077 can avoid inrush current during circuit start up. MP5077 also provides programmable soft start time， output discharge functions， OCP and thermal shutdown features. The maximum load at the output （source） is current limited. This is accomplished by utilizing a sense FET topology. The magnitude of the current limit is controlled by an external resistor from the ILIM pin to ground. An internal charge pump drives the gate of the power device， allowing a very low on-resistance DMOS power FET of just 10m?。 The MP5077 is available in a tiny 12-pin 2mmx2mm QFN package.
