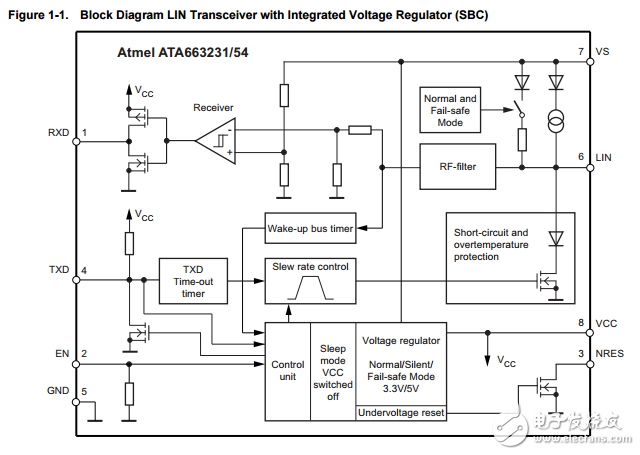

The Atmel? ATA6632xx device family includes two basic products; a LIN system basis chip （SBC） and a low-drop voltage regulator with compatible footprints. The Atmel ATA663231/54 （system basis chip） is a fully integrated LIN transceiver， designed according to the LIN specification 2.0， 2.1， 2.2， 2.2A and SAEJ2602-2， with a low-drop voltage regulator （3.3V/5V/85mA）。 The combination of voltage regulator and bus transceiver makes it possible to develop simple but powerful slave nodes in LIN bus systems. Atmel ATA663231/54 is designed to handle the low-speed data communication in vehicles （for example， in convenience electronics）。 Improved slope control at the LIN driver ensures secure data communication up to 20Kbaud. The bus output is designed to withstand high voltage. Sleep mode and silent mode guarantee minimized current consumption even in the case of a floating or a short-circuited LIN bus. The Atmel ATA663201/03 （voltage regulator） is a fully integrated low-drop voltage regulator， with 3.3V/5V output voltage and 85mA current capability. It is especially designed for the automotive environment. A key feature is that the current consumption is always below 170μA （without load）， even if the supply voltage is below the regulator’s nominal output voltage.
