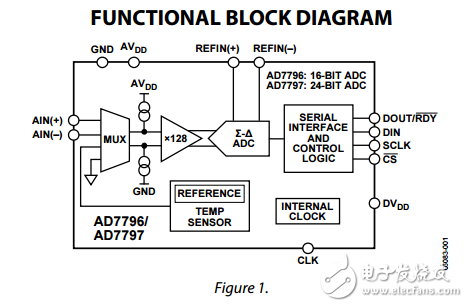

The AD7796/AD7797 are complete， analog front ends for high precision， bridge sensor applications such as weigh scales. The AD7796/AD7797 contain a Σ-? ADC capable of 16-/24-bit resolution， respectively. The on-chip instrumentation amplifier has a fixed gain of 128， allowing small amplitude signals such as those from bridge sensors to be directly interfaced to the ADC. Each device has one differential input and contains a temperature sensor that is internally connected to the ADC. This sensor can be used to perform temperature compensation of the bridge. The devices can be operated with the internal clock or an external clock. The output data rate from the devices is softwareprogrammable and can be varied from 4.17 Hz to 123 Hz. The AD7796/AD7797 operate with a power supply from 2.7 V to 5.25 V. Each device consumes a current of 250 μA typical and is housed in a 16-lead TSSOP.
