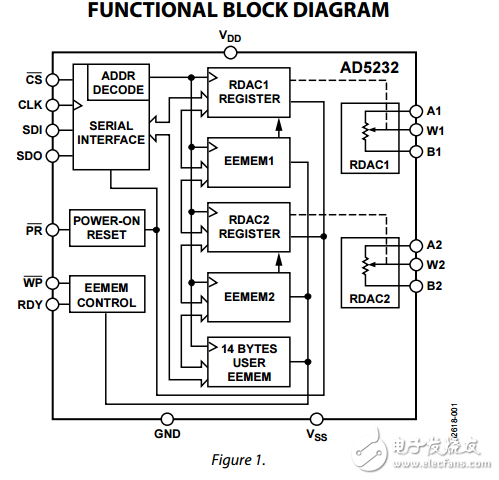

The AD5232 device provides a nonvolatile， dual-channel， digitally controlled variable resistor （VR） with 256-position resolution. This device performs the same electronic adjustment function as a mechanical potentiometer with enhanced resolution， solid state reliability， and superior low temperature coefficient performance. The versatile programming of the AD5232， perormed via a microcontroller， allows multiple modes of operation and adjustment. In the direct program mode， a predetermined setting of the RDAC registers （RDAC1 and RDAC2） can be loaded directly from the microcontroller. Another important mode of operation allows the RDACx register to be refreshed with the setting previously stored in the corresponding EEMEM register （EEMEM1 and EEMEM2）。 When changes are made to the RDACx register to establish a new wiper position， the value of the setting can be saved into the EEMEMx register by executing an EEMEM save operation. After the settings are saved in the EEMEMx register， these values are automatically transferred to the RDACx register to set the wiper position at system power-on. Such operation is enabled by the internal preset strobe. The preset strobe can also be accessed externally.
