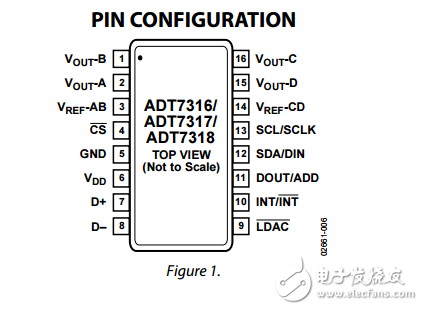

The ADT7316/ADT7317/ADT73181 combine a 10-bit temperature-to-digital converter and a quad 12-/10-/8-bit DAC， respectively， in a 16-lead QSOP. This includes a band gap temperature sensor and a 10-bit ADC to monitor and digitize the temperature reading to a resolution of 0.25°C. The ADT7316/ ADT7317/ADT7318 operate from a single 2.7 V to 5.5 V supply. The output voltage of the DAC ranges from 0 V to 2 VREF， with an output voltage settling time of 7 μs typically. The ADT7316/ ADT7317/ADT7318 provide two serial interface options， a 4-wire serial interface that is compatible with SPI， QSPI， MICROWIRE， and DSP interface standards， and a 2-wire SMBus/I2 C interface. They feature a standby mode that is controlled via the serial interface. The reference for the four DACs is derived either internally or from two reference pins （one per DAC pair）。 The outputs of all DACs may be updated simultaneously using the software LDAC function or external LDAC pin. The ADT7316/ADT7317/ ADT7318 incorporate a power-on-reset circuit that ensures the DAC output powers up to 0 V and remains there until a valid write takes place. The ADT7316/ADT7317/ADT7318 wide supply voltage range， low supply current， and SPI-/I2 C-compatible interface make them ideal for a variety of applications， including personal computers， office equipment， and domestic appliances.
