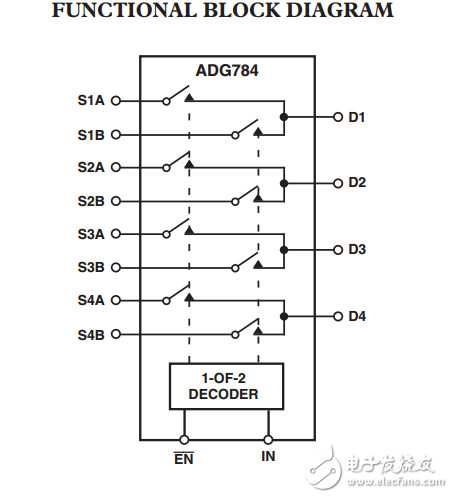

The ADG784 is a monolithic CMOS device comprising four 2:1 multiplexer/demultiplexers with high impedance outputs. The CMOS process provides low power dissipation yet gives high switching speed and low on resistance. The on-resistance variation is typically less than 0.5 Ω with an input signal ranging from 0 V to 5 V. The bandwidth of the ADG784 is greater than 200 MHz and this， coupled with low distortion （typically 0.5%）， makes the part suitable for switching fast ethernet signals. The on-resistance profile is very flat over the full analog input range ensuring excellent linearity and low distortion when switching audio signals. Fast switching speed， coupled with high signal bandwidth， also makes the parts suitable for video signal switching. CMOS construction ensures ultralow power dissipation making the parts ideally suited for portable and battery powered instruments. The ADG784 operates from a single 3.3 V/5 V supply and is TTL logic compatible. The control logic for each switch is shown in the Truth Table.

　　These switches conduct equally well in both directions when ON， and have an input signal range that extends to the supplies. In the OFF condition， signal levels up to the supplies are blocked. The ADG784 switches exhibit break-beforemake switching action.
