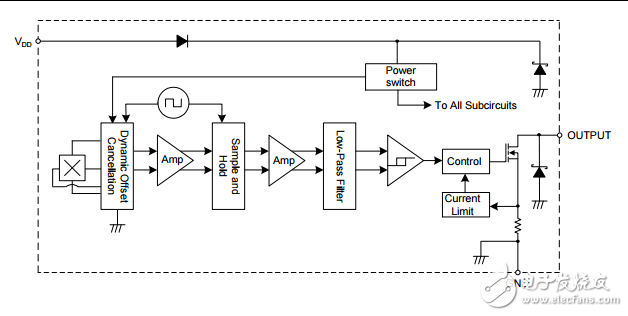

The AH3768Q is an AEC-Q100 qualified， high-voltage， low-sensitivity Hall-Effect latch IC designed for brushless DC-motor commutation， speed measurement， angular or linear encoders and position sensors in automotive applications. To support wide range of demanding applications， the design is optimized to operate over the supply range of 3.0V to 28V. With chopper stabilized architecture and an internal bandgap regulator to provide temperature compensated supply for internal circuits， the AH3768Q provides a reliable solution over the whole operating range. For robustness and protection， the device has a reverse blocking diode with a Zener clamp on the supply. The output has an over current limit and a Zener clamp. The single， open-drain output can be switched on with South pole of sufficient strength and switched off with North pole of sufficient strength. When the magnetic flux density （B） perpendicular to the package is larger than the operate point （Bop） the output is switched on （pulled low）。 The output is held latched until magnetic flux density reverses and becomes lower than the release point （Brp）。
