FEATURES
• Small glass structure ensures high reliability
• Fast switching
• Low leakage
• High temperature soldering guaranteed:
250oC/10S/9.5mm lead length
at 5 lbs tension
MECHANICAL DATA
• Terminal: Plated axial leads solderable per
MIL-STD 202E, method 208C
• Case: Glass,hermetically sealed
• Polarity: Color band denotes cathode
• Mounting position: Any

IN4148封裝尺寸

in4148參數資料

·反向漏電流小。Low reverse leakage
·開關速度快。Fast switching speed
·最大功率耗散500mW。Maximum power dissipation 500mW
·高穩(wěn)定性和可靠性。High stability and high reliability
機械數據 Mechanical Data
封裝: DO-35 玻璃封裝 Case: DO-35 Glass Case
極性: 色環(huán)端為負極 Polarity: Color band denotes cathode end
安裝位置: 任意 Mounting Position: Any

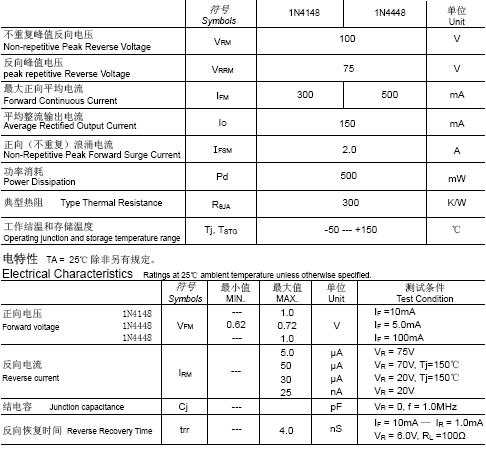

極限值和溫度特性 TA = 25℃ 除非另有規(guī)定。
Maximum Ratings & Thermal Characteristics Ratings at 25℃ ambient temperature unless otherwise specified.

in4148參數

in4148特性曲線 Characteristic Curves
