數據： TS3DV642 具有 1.8V 兼容控制和斷電模式的 12 通道 1:2多路復用器/多路解復用器 數據表 (Rev. E)
TS3DV642是一款12通道1：2或2：1雙向多路復用器/多路解復用器.TS3DV642可由2.6V至4.5V的電源供電，適用于電池供電。應用。該器件的導通電阻（R ON ）較低并且I /O電容較小，能夠?qū)崿F(xiàn)典型值高達7.5GHz的帶寬。該器件可為HDMI和DisplayPort應用提供所需的高帶寬。
TS3DV642具有斷電模式，該模式下所有通道均具有高阻抗（Hi-Z），并且功耗極低。< /p>
<小>所有商標是其相應所有者的財產。
| Protocols |
| Configuration |
| Number of Channels (#) |
| VCC (Min) (V) |
| VCC (Max) (V) |
| Ron (Typ) (Ohms) |
| Input/Ouput Voltage (Min) (V) |
| Input/Ouput Voltage (Max) (V) |
| ICC (Max) (uA) |
| Bandwidth (MHz) |
| ESD HBM (Typ) (kV) |
| Operating Temperature Range (C) |
| Package Size: mm2:W x L (PKG) |
| Package Group |
| Crosstalk (dB) |
| ESD Charged Device Model (kV) |
| ICC (Typ) (uA) |
| Input/Output Continuous Current (Max) (mA) |
| Input/Output OFF-state Capacitance (Typ) (pF) |
| Input/Output ON-state Capacitance (Typ) (pF) |
| Off Isolation (Typ) (dB) |
| OFF-state leakage current (Max) (µA) |
| Propagation Delay (ns) |
| Ron (Max) (Ohms) |
| Ron Channel Match (Max) (?) |
| RON Flatness (Typ) (Ohms) |
| Turn off Time (Disable) (Max) (ns) |
| Turn on Time (Enable) (Max) (ns) |
| VIH (Min) (V) |
| VIL (Max) (V) |
| TS3DV642 | TS3DV621 |
|---|---|
|
HDMI DVI DisplayPort TMDS LVDS VGA |
HDMI DVI DisplayPort TMDS LVDS |
| 2:1 SPDT | 2:1 SPDT |
| 12 | 12 |
| 2.6 | 3 |
| 4.5 | 3.6 |
| 6.5 | 8 |
| 0 | 0 |
| 5.5 | 5.5 |
| 400 | |
| 7500 | 2200 |
| 2 | |
| -40 to 85 | |
| 42WQFN: 32 mm2: 3.5 x 9(WQFN) | 42WQFN: 32 mm2: 3.5 x 9(WQFN) |
| WQFN | WQFN |
| -98 | -70 |
| 1 | 1 |
| 50 | 300 |
| 128 | 128 |
| 0.5 | 5.6 |
| 0.3 | 2 |
| -40 | |
| 10 | 1 |
| 0.03 | 0.04 |
| 10.5 | 12 |
| 1 | 1 |
| 1.5 | 1.5 |
| 5 | |
| 7 | |
| 1.4 | 2 |
| 0.5 | 0.8 |

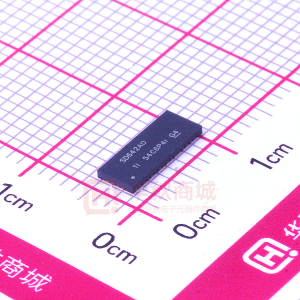

型號：TS3DV642A0RUAR 封裝：WQFN42_EP
品牌：TI 描述：用于DVI 1.0/顯示端口1.4/HDMI 2.0的6 Gbps 12通道差分1對2和2對1多路復用器
金額：￥9.03560
