Features

　　? High Performance， Low Power AVR? 8-Bit Microcontroller

　　? Advanced RISC Architecture

　　- 135 Powerful Instructions – Most Single Clock Cycle Execution

　　- 32x8 General Purpose Working Registers

　　- Fully Static Operation

　　- Up to 16 MIPS Throughput at 16 MHz and 1.8V

　　- On-Chip 2-cycle Multiplier

　　? Non-volatile Program and Data Memories

　　- 128K Bytes of In-System Self-Programmable Flash

　　? Endurance： 10’000 Write/Erase Cycles @ 125°C （25’000 Cycles @ 85°C）

　　- 4K Bytes EEPROM

　　? Endurance： 20’000 Write/Erase Cycles @ 125°C （100’000 Cycles @ 25°C）

　　- 16K Bytes Internal SRAM

　　? JTAG （IEEE std. 1149.1 compliant） Interface

　　- Boundary-scan Capabilities According to the JTAG Standard

　　- Extensive On-chip Debug Support

　　- Programming of Flash EEPROM， Fuses and Lock Bits through the JTAG interface

　　? Peripheral Features

　　- Multiple Timer/Counter & PWM channels

　　- Real Time Counter with Separate Oscillator

　　- 10-bit， 330 ks/s A/D Converter; Analog Comparator; On-chip Temperature Sensor

　　- Master/Slave SPI Serial Interface

　　- Two Programmable Serial USART

　　- Byte Oriented 2-wire Serial Interface

　　? Advanced Interrupt Handler

　　? Watchdog Timer with Separate On-Chip Oscillator

　　? Power-on Reset and Low Current Brown-Out Detector

　　? Advanced Power Save Modes

　　? Fully integrated Low Power Transceiver for 2.4 GHz ISM Band

　　- Supported Data Rates： 250 kb/s and 500 kb/s， 1 Mb/s， 2 Mb/s

　　- -100 dBm RX Sensitivity; TX Output Power up to 3.5 dBm

　　- Hardware Assisted MAC （Auto-Acknowledge， Auto-Retry）

　　- 32 Bit IEEE 802.15.4 Symbol Counter

　　- Baseband Signal Processing

　　- SFD-Detection， Spreading; De-Spreading; Framing ; CRC-16 Computation

　　- Antenna Diversity and TX/RX control

　　- TX/RX 128 Byte Frame Buffer

　　? Hardware Security （AES， True Random Generator）

　　? Integrated Crystal Oscillators （32.768 kHz & 16 MHz， external crystal needed）

　　? I/O and Package

　　- 38 Programmable I/O Lines

　　- 64-pad QFN （RoHS/Fully Green）

　　? Temperature Range： -40°C to 125°C Industrial

　　? Supply voltage range 1.8V to 3.6V with integrated voltage regulators

　　? Ultra Low Power consumption （1.8 to 3.6V） for Rx/Tx & AVR： 《18.6 mA

　　- CPU Active Mode （16MHz）： 4 .1 mA

　　- 2.4GHz Transceiver： RX_ON 12.5 mA / TX 14.5 mA （maximum TX output power）

　　- Deep Sleep Mode： 《250nA @ 25°C

　　? Speed Grade： 0 – 16 MHz @ 1.8 – 3.6V

　　Applications

　　? ZigBee? / IEEE 802.15.4-2006/2003? – Full And Reduced Function Device （FFD/RFD）

　　? General Purpose 2.4GHz ISM Band Transceiver with Microcontroller

　　? RF4CE， SP100， WirelessHART?， ISM Applications and IPv6 / 6LoWPAN

　　8-bit Microcontroller with Low Power 2.4GHz Transceiver for ZigBee and IEEE 802.15.4

　　ATmega128RFA1

　　PRELIMINARY

　　8266FS-MCU Wireless-09/14

　　1

　　1 Pin Configurations

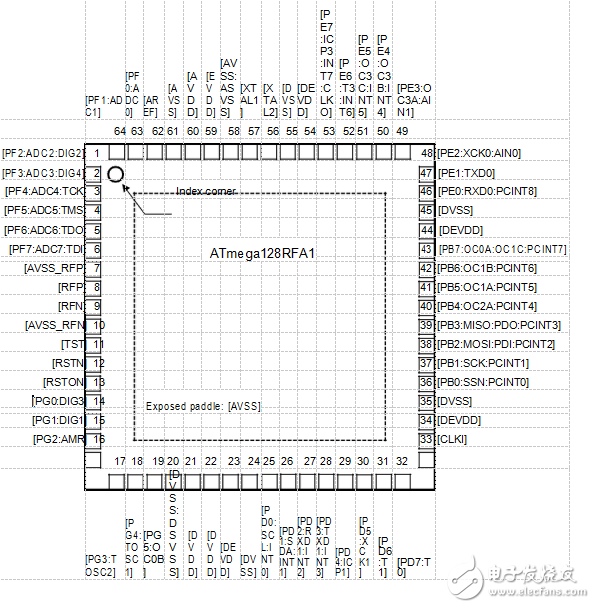

　　Figure 1-1. Pinout ATmega128RFA1

　?。跴F1:ADC1］［PF0:ADC0］［AREF］［AVSS］［AVDD］［EVDD］［AVSS:ASVSS］［XTAL1］［XTAL2］［DVSS］［DEVDD］［PE7:ICP3:INT7:CLKO］［PE6:T3:INT6］［PE5:OC3C:INT5］［PE4:OC3B:INT4］［PE3:OC3A:AIN1］

　　64636261605958575655545352515049

　?。跴F2:ADC2:DIG2］1 48［PE2:XCK0:AIN0］

　?。跴F3:ADC3:DIG4］2 47 ［PE1:TXD0］

　　［PF4:ADC4:TCK］3 Index corner 46 ［PE0:RXD0:PCINT8］

　?。跴F5:ADC5:TMS］4 45 ［DVSS］

　?。跴F6:ADC6:TDO］5 44 ［DEVDD］

　?。跴F7:ADC7:TDI］6 ATmega128RFA1 43 ［PB7:OC0A:OC1C:PCINT7］

　?。跘VSS_RFP］7 42［PB6:OC1B:PCINT6］

　?。跼FP］8 41［PB5:OC1A:PCINT5］

　?。跼FN］9 40［PB4:OC2A:PCINT4］

　?。跘VSS_RFN］ 10 39［PB3:MISO:PDO:PCINT3］

　　［TST］ 11 38［PB2:MOSI:PDI:PCINT2］

　?。跼STN］ 12 37［PB1:SCK:PCINT1］

　　［RSTON］ 13 36［PB0:SSN:PCINT0］

　?。跴G0:DIG3］ 14 Exposed paddle： ［AVSS］ 35［DVSS］

　　［PG1:DIG1］ 15 34［DEVDD］

　?。跴G2:AMR］ 16 33［CLKI］

　　17181920212223242526272829303132

　　［PG3:TOSC2］［PG4:TOSC1］［PG5:OC0B］［DVSS:DSVSS］［DVDD］［DVDD］［DEVDD］［DVSS］［PD0:SCL:INT0］［PD1:SDA:INT1］［PD2:RXD1:INT2］［PD3:TXD1:INT3］［PD4:ICP1］［PD5:XCK1］［PD6:T1］［PD7:T0］

　　Note： The large center pad underneath the QFN/MLF package is made of metal and internally connected to AVSS. It should be soldered or glued to the board to ensure good mechanical stability. If the center pad is left unconnected， the package might loosen from the board. It is not recommended to use the exposed paddle as a replacement of the regular AVSS pins.

　　2 Disclaimer

　　Typical values contained in this datasheet are based on simulation and characterization results of other AVR microcontrollers and radio transceivers manufactured in a similar process technology. Minimum and Maximum values will be available after the device is characterized.
